    2 Inch LED Sapphire Substrate For High End Lighting

    Ask Lasest Price
    Brand Name : Silian
    Model Number : Customized
    Certification : SGS/ ISO
    Price : Negotiable
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 20,000 pcs/month
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    2 Inch LED Sapphire Substrate For High End Lighting

    2 Inch LED Sapphire Substrate For High-End Lighting


    Product Description

    Sapphire is the main substrate material for LED lighting chips. Due to its obvious comprehensive advantages in cost and performance, it accounts for up to 90% of all types of substrates for LED lighting.


    Technical Specification


    Item4"Unit
    DimensionDiameter:100 ± 0.15mm
    Thickness:650 ± 20um
    Primary Flat:30+1.0mm

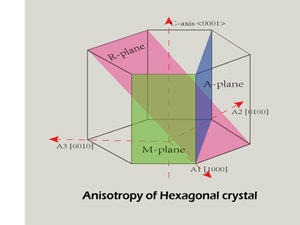

    OrientationSurface-cut:C plane : Tilt 0.2°±0.1° in M axis /~
    Primary Flat:A plane : 0° ± 0.15°~
    FlatnessBow:0 ~ (-10)um
    Warp:≤ 20um
    Total Thickness Variation (TTV):≤ 10um
    LTV≤2.5um
    Front side Roughness≤0.2nm
    Back side Roughness0.8-1.2um
    CleanlinessNo particles and fingerprints~
    4. Material QualityHigh-purity mono-crystal Al2O3~

    Application


    1. Lighting category: high-end lighting, smart street lights, various backlight sources, plant lighting, medical applications, etc.
    2. Consumer display electronics window: mobile phone screen, backlight Mini-LED technology, camera lens, etc.
    3. Military applications: missile nose fairings, airborne radar photoelectric equipment windows, high-performance laser weapons, bulletproof glass, etc.
    4. Special windows: large telescopes, periscopes, scientific research and investigation equipment, etc.
