    Integration Design LED Explosion Proof Lights 8400LM 10500LM For Oil Station

    Ask Lasest Price
    Brand Name : Silian
    Model Number : GB Series Explosion-proof Lamp
    Certification : EX
    Price : by case
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs/month
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    Integration Design LED Explosion Proof Lights 8400LM 10500LM For Oil Station

    LED Explosion-proof Lamp oil station, chemical plant and the places which contains explosive gas


    1. Description of Silian LED Explosion-proof Lamp


    These lights are widely used in the places of Class II Explosive places, such as oil station, chemical plant and the places which contains explosive gas.

    • Professional industrial level l ighting product;
    • LED light source, long life-time, low maintence cost;
    • Exd IIC T6 Gb explosion-proof level ;
    • Patented heat dissipation technology; temperature increase on the heat sink<20℃;
    • Surface temperature <85℃, safer in explosive-proof sites;
    • IP66;
    • Integration design, strong and durable.

    2. Technical Specification


    1LED Explosion-proof Lamp
    2Clamped Screw
    3Cable
    4Explosion-proof spigot G3/4" (External) , M20X1.5 (Internal)
    5Explosion-proof wiring box G3 /4" (Suspending Lamp Box)
    6Straight Pole G3 /4"
    730° bent Pole G3/4" (300mm)
    8CC type Turnbuckle
    9Chain (400mm)
    10Expansive Screw
    11Guardrail G1 1/4"
    12U type Clamped Pipe
    13Bracket
    14Explosion-proof spigot G3/4" (Internal) , M20X1.5 (External)
    1590° bent Pole G3 /4"
    16Explosion-proof wiring box G3 /4"
    17Flange G1 1/4"

    Model No.GB2K020-XXGB3K030-XXGB4K040-XXGB5K050-XXGB6K060-XXGB7K070-XX
    Rated Power(W)203040506070
    Rated Lumen(lm)210031504200525063007350
    Overall Dimension(mm)Φ280×300Φ280×300Φ280×300Φ280×300Φ280×300Φ280×300
    Weight(kg)5.25.25.25.25.25.2
    Model No.GB8K080-XXGB10K100-XXGB12K120-XXGB15K150-XXGB18K180-XXGB20K200-XX
    Rated Power(W)80100120150180200
    Rated Lumen(lm)84001050012600157501890021000
    Overall Dimension(mm)Φ280×300Φ280×300Φ320×300Φ320×300Φ320×300Φ320×300
    Weight(kg)5.25.25.27.57.57.5

    Explosion-proof ClassExd IIC T6 Gb
    Ext DAZ1 IP65 T80℃
    Input Voltage(V)AC100~277
    Frequency (Hz)47~63
    Operating Ambient Temperature (℃)-20~40
    IP LevelIP66


    3. Beam Angel

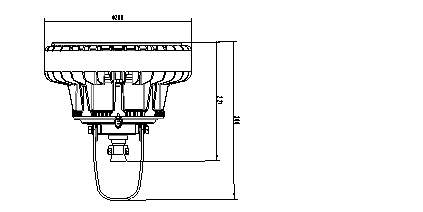

    4. Product size(mm)

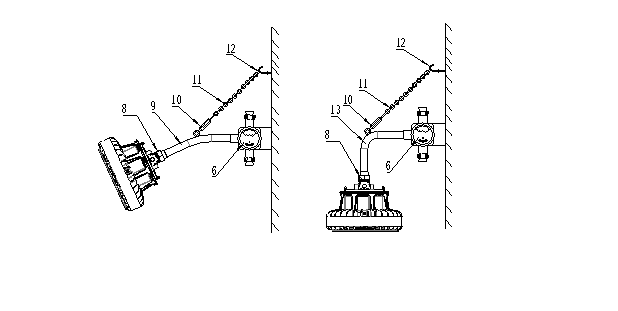

    5. Installtion Interface
